PPAv Series

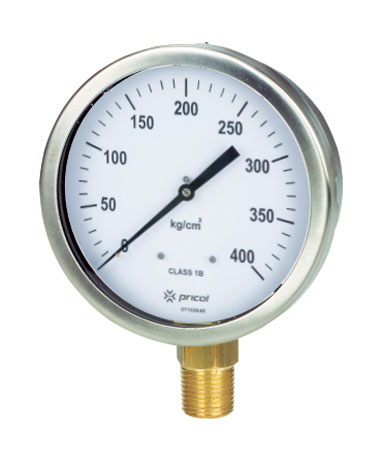

Antivibration Pressure GaugesPPAv001


Features

  • Oil filled (damp) with regulated buffer, this Gauge has excellent resistance ability.
  • Can measure the average value of pulsating pressure of gas or liquid media.
  • Can avoid damage which is caused by strong pulsation and violent shaking and ensure precise measurement.
  • Outer case is made of stainless steel material which can be used in environments that has strong corrosion and violent shaking.
  • Request a Quote
  • Product information
  • Product Range
APPLICATION Ideal for High vibration applications
DIAL SIZE 4”, 6”
CASE SS304
RING SS304
WINDOW Glass / Shatterproof glass
DIAL Black figures on white background. Materials - Customizable
POINTER Friction adjustable knife edge type. Materials & Colors - Customizable
BOURDON TUBE SS / Brass
SOCKET SS / Brass
MOVEMENT SS / Brass
ANTI-VIBRATION SPRING MS (Straight or 90°Angle)
CONNECTIONS 1/8”, 1/4”, 3/8”, 1/2” BSP or NPT
RANGES 0 to 1000bar or Kg/cm 2
ACCURACY ± 1% FSD
FILL PLUG Ventable
PROTECTION IP67
LIQUID FILL Glycerin (Includes throttle plug)
(BAR OR KG/CM2) (PSI)
0 - 25 0 - 360
0 - 100 0 - 1450
0 - 400 0 - 5800
0 - 600 0 - 8700
0 - 700 0 - 10000
0 - 1000 0 - 14500
