PL Series

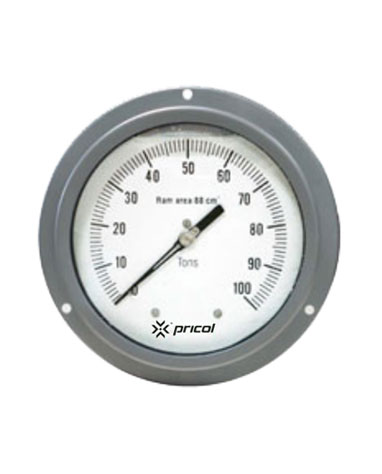

Load GaugesPL001


Features

  • Compact design
  • Light weight
  • Product information
  • Product Range
Application Used to measure load in hydraulic load testing
Dial size 4'', 6'', 8" & 10''
Case SS304, Aluminium
Ring SS304, Aluminium
window Glass /Shatterproof glass
Dial Black figures on white background. Materials - Customizable
Pointer Friction adjustable knife edge type. Materials & Colors - Customizable
Bourdon tube SS316
Socket SS316
Movement SS304
Connections 3/8'' BSP or NPT
Ranges 100,200,300 …… Tons or KN
Accuracy ± 0.5 %, ± 1 % FSD
Fill Plug Ventable
Protection IP52
Liquid Fill Glycerin, Silicone Oil (Includes throttle plug)
ton
0 - 50
0 - 100
0 - 200
0 - 250
0 - 300
