PPD Series

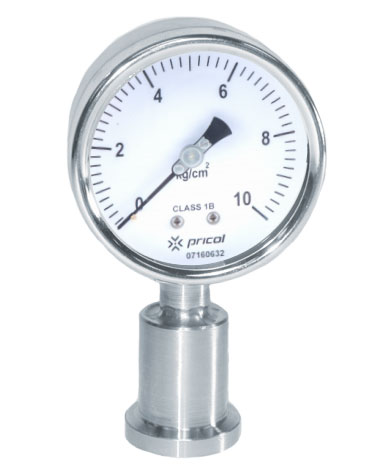

Triclover GaugesPPD003

Features

  • Exceptional strength
  • Glycerin or Silicon oil filled
  • Long working life
  • High strength
  • Accurate measurement
  • Dimensional accuracy
  • Request a Quote
  • Product information
  • Product Range
Application Widely used in Food & Beverage / Pharmaceutical / Sanitary / Water Treatment & etc. Dairy
Dial size 2½'',4''
Case & Ring SS304
window Glass / Toughened Glass / Shatterproof Glass
Dial Black figures on white background. Materials - Customizable
Pointer '0' Adjustable, Materials & Colors - Customizable
Bourdon tube SS316
Diaphragm SS316
TC Material SS316 One Piece
Gasket EPDM
Movement SS304
Joints Argon Welded
Ranges 0 to 60 bar or kg/cm 2
Accuracy ± 1.6% FSV
Fill Plug Ventable
Protection IP65
Liquid Fill Glycerin, Silicone Oil (Includes throttle plug)
Bar psi
0 - 4 0 - 60
0 - 10 0 - 140
0 - 25 0 - 360
0 - 40 0 - 580
0 - 60 0 - 870
